• Mount: Through Hole

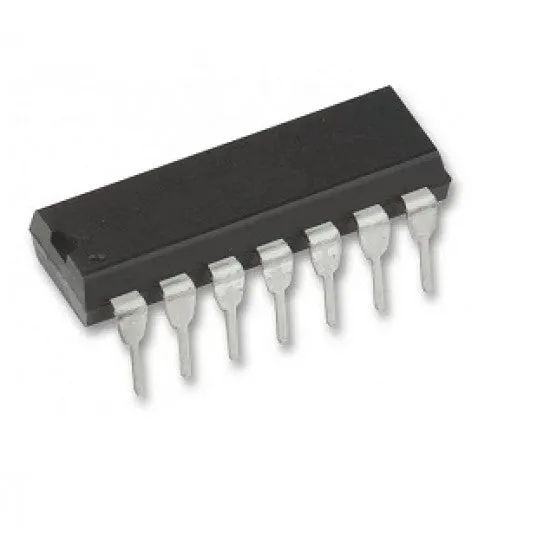

• Package: DIP14
• Logic Function: NAND
• Number Of Pins: 14
• Max operating Temperture: 125°
• Max.Supply Voltage: 6V
• Minimum operating temperature: -55°C
• Min. supply Voltage: 2V
• No.Of Channel: 4

The 74LS107 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74LS107 are dual negative-edge triggered JK-type flip-flops featuring individual J, K, clock (nCP) and reset (nR) inputs; also complementary Q and Q outputs.

The J and K inputs must be stable one set-up time prior to the HIGH-to-LOW clock transition for predictable operation.

The reset (nR) is an asynchronous active LOW input.

When LOW, it overrides the clock and data inputs, forcing the Q output LOW and the Q output HIGH.

Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times.

FEATURES

• Output capability: standard

• ICC category: flip-flops
